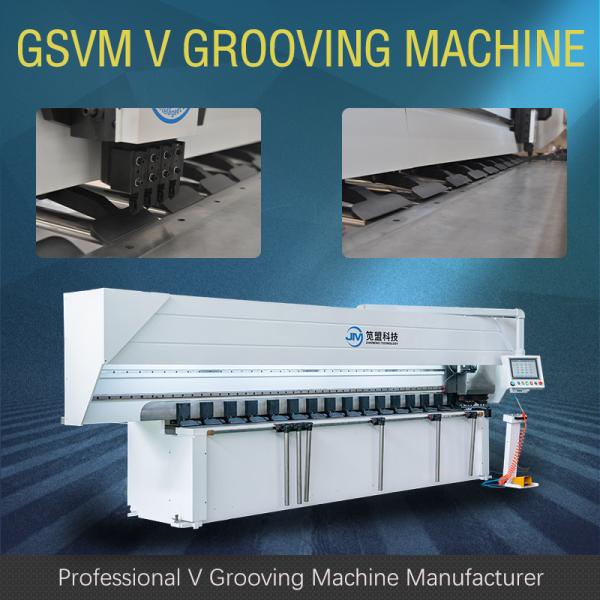

CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine

Ask Lasest Price
Brand Name :	JM
Model Number :	GSVM
Certification :	ISO9001,CE
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	30 sets per mouth
Delivery Time :	10-30days

Add to Cart

Product Details
Company Profile

CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine

Hydraulic V Groove Cutting Machine for Metal Curtain Wall Panel

Mirror like groove surface

The lengthened heavy slider guide rail group, combined with the more than ten years of experience of the assembly master, realizes the ultra stable grooving of the tool rest on the board surface. As a result, SUBIERUI v grooving machine can obtain a very high quality groove surface - the groove surface is as smooth as a mirror.

Multiple auxiliary presser feet
The number of auxiliary presser feet is large and the distribution is scientific. Multiple auxiliary presser feet in two directions are hydraulically controlled, and the workpiece clamping is more stable and reliable.

Automatic Cycle Programming

The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.

No.	Name		Parameter	Unit
1	Max. Width of metal sheet		1500	mm
2	Max. Length of metal sheet		4000	mm
3	Max. thickness(Stainless steel)		6	mm
4	Min. Thickness of metal sheet		0.4	mm
5	Min.distance of the V from edge		10	mm
6	Max. cutting speed of X axis		120	m/min
7	Max .return speed of X axis		120	m/min
8	Max.distance of Y axis		1250	mm
9	Resolution in Y axis		0.001	mm
10	Repeated positioning accuracy		±0.01	mm
11	Resolution in z axis		0.001	mm
12	Repeated positioning accuracy		±0.01	mm
13	Motor power	X axis	5.5	kW
13	Motor power	Y,Z axis	1.0	kW
14	Overall dimension	Length	5700	mm
		Width	2600
		Height	2000
